Auto Range Photovoltaic 1700V Digital Multimeter Relative Measurement MAX/MIN/PEAK Multimeter

PM8250 photovoltaic digital multimeter Relative LPF measurement MAX/MIN/PEAK multimeter

Peakmeter Photovoltaic System Solution:Peakmeter Photovoltaic System Solution.pdf

Features of photovoltaic digital multimeter

• AC DC Voltage/Current/resistance/capacitance/frequency/temperature/max/min/peak
• Measure DCV (up to 1700V)
• Filter harmonic (LPF function)
• Measuring temperature with K-type probe (-20℃~1000℃)
• Manual and Automatic Ranging
• 6000 counts display, automatic display of unit signs according to the measurement function position

Description of photovoltaic digital multimeter

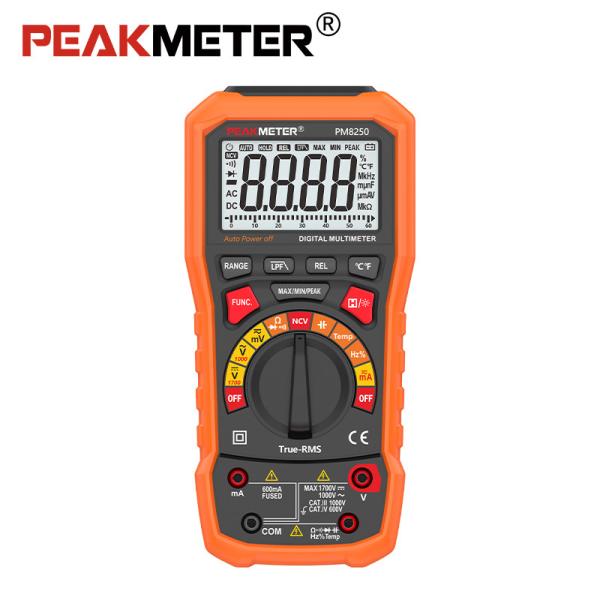

PM8250 is a handheld photovoltaic multimeter, it can be used to measure the voltage of photovoltaic panels, with a maximum DC voltage of 1700V. This is a high-precision multimeter analog and digital dual displays, with a high-definition display screen and backlight function to help users read clearly. In addition to basic measurements of AC/DC voltage, AC/DC current, resistance, and frequency. It also can measure temperature, capacitance, maximum, minimum, and peak values, and measure AC voltage using low-pass filtering function. It has overload protection and low voltage indication, and is a functional multimeter with automatic and manual ranges.

• Auto power off - After about 10 minutes of no-operation after startup, the meter will auto power off.
• Temperature measurement - Set the gear to Temp, insert the K-type thermocouple onto the instrument, then use a K-type thermocouple probe to measure the temperature. Press ℃/℉, can switch between Celsius and Fahrenheit measurement units.
• LPF Function - Through the VFD low-pass filtering function, high-frequency interference can be filtered out, making voltage measurement values and frequency more accurate. This function is only worked at AC voltage gear.

Services

• All products have 12 months warranty, maintenance will not charge during this period (excluded damage of error operation, damage of battery or surface) , and delivery fee will be borne by customer.
• Material and service fee will be charged when warranty is expired, and delivery fee will be charged .
• To product which is out of warranty but has already repaired, we will provide another three months free service if the same spare part has problem recurs .
• Customer can refer the maintenance order to get more information .
